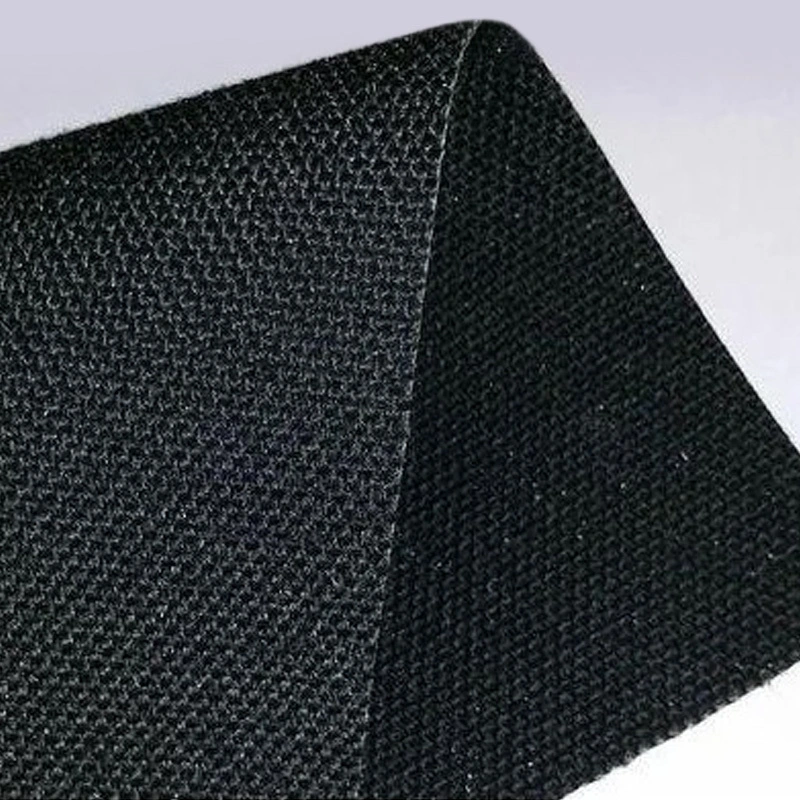

Graphite coated glass fabric 800℃ continuous working temperature
Graphite coated glass fabric is made by high quality high temperature fiberglass cloth with both side graphite coated. Graphite coated fiberglass cloth has improved working temperature and good weave setting for further cut or slit.
Graphite coated fibreglass cloth has a high temperature resistance up to 1000℃ short-term working temperature and 800℃ continuous working temperature.
This graphite coated fiberglass for welding blanket is a excellent option.
Product Features
● High temperature and fire resistance
● Excellent abrasion resistance
● Good weave setting and easily fabricate
● No black on hand
● non asbestos
Product Application
● Welding defender
● Welding blanket
● Removable insulation mattress, jackets & pads
● Fire doors/smoke curtains
● Heat protection quilt
● Foundry splash protection
Related Parameters
|
Item |
Yarn count |
Tensile strength |
Thickness |
Weight |
||
|
Warp |
Weft |
Warp |
Weft |
|||
|
G84215 |
8.0 |
6.0 |
1800 |
1000 |
0.40 |
300 |
|
G2025 |
8.0 |
5.7 |
2000 |
1200 |
0.80 |
600 |
|
G2125 |
6.0 |
5.0 |
2200 |
1400 |
0.80 |
640 |
|
G620 |
7.0 |
5.0 |
2400 |
1600 |
0.85 |
740 |
|
G23 |
4.4 |
4.5 |
2500 |
1700 |
0.85 |
780 |
|
G24 |
6.0 |
3.8 |
3200 |
2800 |
1.00 |
815 |
|
G2626 |
10.0 |
6.5 |
3600 |
2900 |
1.10 |
950 |
|
G30(R) |
6.0 |
3.8 |
3800 |
2800 |
1.30 |
1000 |
|
G33 |
6.0 |
3.6 |
4000 |
3000 |
1.35 |
1100 |
|
G2400 |
5.5 |
4.0 |
3000 |
2500 |
1.00 |
800 |
|
G3200R |
4.0 |
4.0 |
3500 |
2500 |
1.50 |
1000 |
|
G4000 |
4.0 |
3.0 |
4000 |
3500 |
2.00 |
1250 |
|
G6000 |
4.0 |
2.4 |
4500 |
4000 |
3.00 |
1800 |
|
G6000B |
4.0 |
3.5 |
4500 |
4000 |
3.00 |
2000 |
Can be dyed in different colors
Can be stainless steel reinforced
Can be slit or sewn to order
