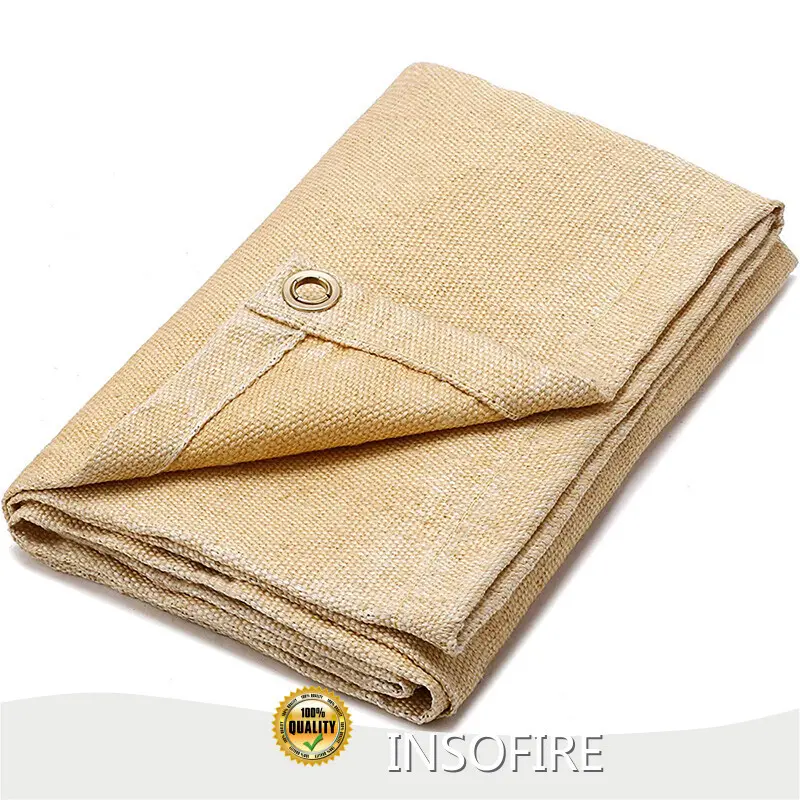

Product details of the welding fire blanket
Quick Overview
The production of INSOFIRE welding fire blanket adopts advanced technology and latest machines & equipment. The competitive advantages of this product are as follows: long service life, good performance and excellent quality. With the huge application prospect, the product is profoundly preferred by our customers.
Product Information
Compared with other welding fire blanket, the welding fire blanket produced by INSOFIRE has the following advantages and features.
Product overview
● Using this fire-resistant material to cover small cracks, crevices or holes prevents flares, sparks or molten metal spatter from trapping in these tight spaces and reduces the possibility of uncontrolled welding fires.
● InsoFire offers customers the chance to tailor custom-made protection blankets for welding, cutting and grinding operations, according to the client’s need and with different flame retardant fabrics in relation to the kind of welding that is going to be performed. The perimeter is reinforced with a bias and also InsoFire offers the opportunity to incorporate metallic grommets on each 50 cm to ease its holding.
● The maximum measurements that can be acquired are 10x10 meters. For higher sizes, we recommend our clients contact InsoFire’s team via phone or email.
We also supply the fire welding blankets in rolls, with width 1m/1.2m/1.5m, roll length 50m or 100m, as your needs.
Product Application
● Fire retardant blanket for MIG welding.
● Fire retardant blanket for TIG welding.
● Fire retardant blanket for Electrode welding.
● Fire retardant blanket for radial cutting.
● Flame retardant blanket for oxyfuel cutting works.
● Flame retardant blanket for plasma cutting works.
● Flexible flame retardant barrier.
● Flame retardant curtain for welding.
● Thermal barrier to protect elements.
● Suitable for works with ferrous and non-ferrous metals
Application SECTORS
● Automotive.
● Naval sector and shipyards.
● Construction sector and subcontractors.
● Foundries, metalworking and steel companies.
● Mechanical workshops.
● Machinery manufactories.
● Boiler-making.
● Petrochemical and pharmaceutical sectors.
Related Parameters
|
Name |
Fabric Material |
size |
Thickness |
Temp Resistance |
Package |
||
|
m |
ft |
mm |
inch |
||||
|
Welding fire blanket |
1. Fiberglass fabric 2. Silica fabric 3. PU coated fabric 4. Silicone coated fabric 5. Acrylic coated fabric 6. Neoprene coated fabric 7. Vermiculite coated fabric |
1*50m/roll 1.2*50m/roll 1.5*50m/roll 1.8*50m/roll 1.0*1.0m 1.2*1.2m 1.2*1.8m 1.8*1.8m 2.4*2.4m 6*6m 6*8m 6*9m 10*10m |
3*167ft 4*167ft 5*167ft 6*167ft 3*3ft 4*4ft 4*6ft 6*6ft 8*8ft 20*20ft 20*27ft 20*30ft 33*33ft |
0.4mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 3.0mm |
0.16in. 0.24in. 0.31in. 0.39in. 0.47in. 0.59in. 0.79in. 1.18in. |
300℃ 550℃ 800℃ 1200℃ |
1.PE plastic bag 2.PVC bag with zippers 3. Woven bag (in rolls) 4. Customized |
How to choose welding blanket or cloth?
1. Select application.
General applications of welding blanket or cloth:
● Light duty - general purpose welding, light sparks and small spatter. Not recommended for horizontal application.
● Medium duty - heavier welding, sparks, spatter and light slag.
● Heavy duty - heavy sparks, spatter, slag and molten metal.
● Stress relief - choose soft materials recommended for Stress relief applications. The coated materials usually are not recommended for stress relief applications.
2. Determine dimensions of area to be protected.
InsoFire provides welding cloth in roll form or in prefabricated blankets. Consider dimensions of area to be protected and determine what form is suitable.
3. Select the finished blanket or cloth.
● Stiff material coated material has better abrasion resistance. Stiffer to allow spatter and slag to roll off easily.
● Soft material without coated material is pliable. This material is easy to be draped over and wrapped around objects. It's usually used for stress relief applications.
● Weight and thickness of material: the heavier and thicker material provide better protection and take longer to burn through.
