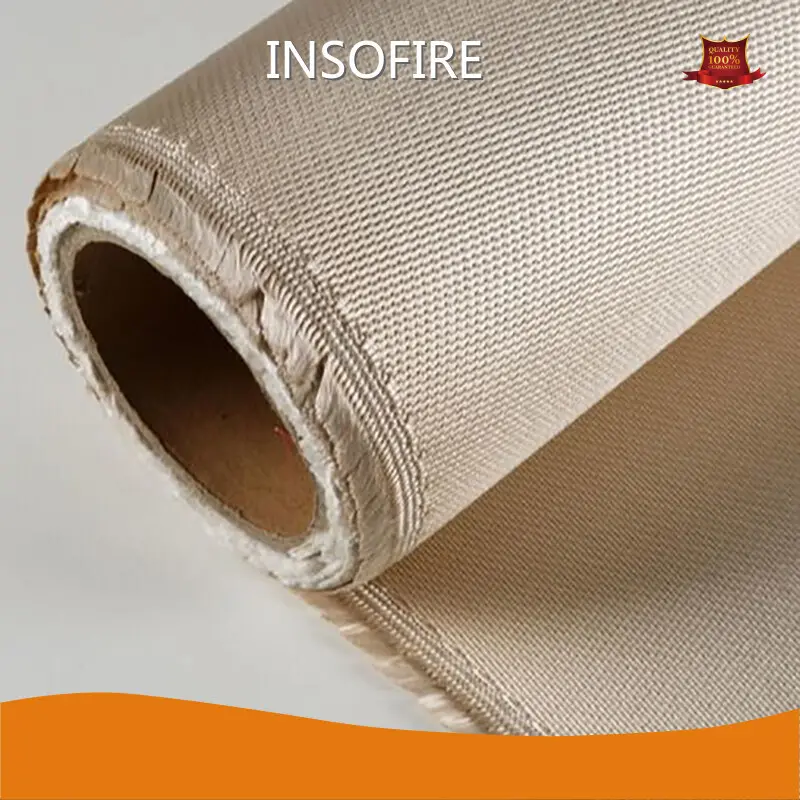

Product details of the silica fiber cloth
Quick Detail
INSOFIRE silica fiber cloth is fabricated in complete compliance with the international production standards. The product has many excellent characteristics of long service life and stable performance. The product will have a stronger competitive advantage in the long term.
Product Information
Compared with products in the same category, INSOFIRE's silica fiber cloth has the following outstanding features.
Product Features
● high temperature resistance up to 1000 C, instantaneous temperature resistance to 1700c
● heat and fire resistant, fire resistance
● waterproof, chemical resistance, weatherproof
● low thermal conductivity
● low thermal shrinkage rate
● Good chemical resistance with the exception of hydrochloride acid, phosphor acid, magnesium, sodium and silicon.
● good anti-abrasion, easy to be cut, sewn and fabricated
● Contains no asbestos or ceramic fibers
● Properties maintained up to 1800℉ (983℃)
● Can be further finished with silicone, PU, vermiculite, aluminum foil.
Product Application
● Insulation wrapping material for pipes, wire, cable, exhaust, and other geometric shapes
● Protective welding insulation covers, curtains, blankets, and pads
● Equipment and personnel protection
● High temperature seals, gaskets, and tadpole gaskets
● Power generation, Refineries, Shipbuilding & Metal processing Industries
Related Parameters
|
Silica Fabric Specifications |
||||||
|
Product No. |
Thickness (mm) |
Weight (g/m2) |
Width (mm) |
SiO2 Content |
Weave Type |
Working temperature（℃） |
|
BWT100 |
0.10 |
80 |
820 |
>96% |
Plain |
1000 |
|
HS-330 |
0.33 |
180 |
860 |
>96% |
4H Satin |
1000 |
|
BWT260 |
0.26 |
240 |
820 |
>96% |
Plain |
1000 |
|
HS-430 |
0.4 |
420 |
920/100 |
>96% |
4H Satin |
1000 |
|
HS-600 |
0.7 |
612 |
920/100/130/152 |
>96% |
8H Satin |
1000 |
|
HS-880 |
1.0 |
880 |
920/100/130/152 |
>96% |
8H Satin |
1000 |
|
HS-1100 |
1.3 |
1120 |
920/100/152 |
>96% |
8H Satin |
1000 |
|
HS-1200 |
1.35 |
1220 |
920/100 |
>96% |
8H Satin |
1000 |
|
STP-42 |
2.0 |
1450 |
920/100 |
>96% |
Plain |
1000 |
|
STP-52 |
3.0 |
1750 |
920 |
>96% |
Plain |
1000 |
|
RS-600 |
0.7 |
700 |
920/100/105/152 |
70% |
8H Satin |
800 |
|
RS-1100 |
1.3 |
1200 |
920/100/152 |
70% |
8H Satin |
800 |
All above items can be coated with silicone rubber, aluminium, PU, vermiculite, etc.
