High Silica Fiberglass Fabric Factory Price Bulk Buy
Product details of the high silica fiberglass fabric
Product Information

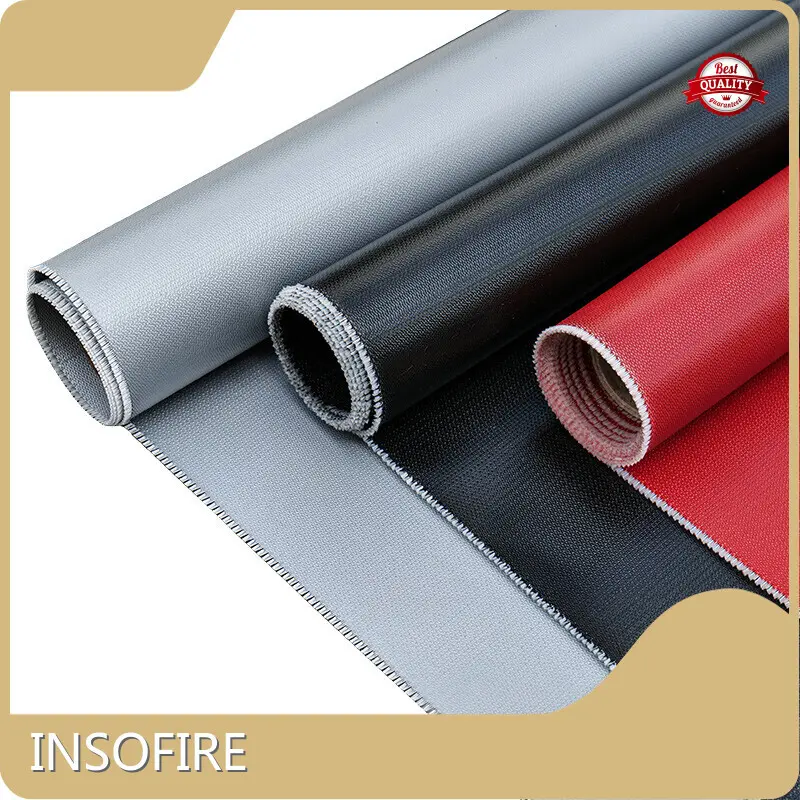

INSOFIRE high silica fiberglass fabric is manufactured under standardized production conditions. An effective quality control system is achieved through the production of the product to ensure consistent quality. The product, with many good characteristics, is applicable to various fields.
Related Parameters
|
Fire Resistance |
UL 94 V0 |
|
Radiant Heat |
EN ISO 6942 | C1 |
|
Traction Resistance |
ASTM-D-1424 | Warp 1500 lbs/inch Fill 2025 lbs/inch |
|
Flame Propagation |
ISO 15025 | A1 - A2 |
|
Melted Metal Splashes |
EN ISO 9150 | CLASS 2EN ISO 9185 | E3/D3 |
|
Water Penetration Resistance |
EN 20811 | 100 |
|
Resistance Welding And Cutting Projections |
11611 | CLASS 2 |
|
Abrasion Resistance |
ISO 12947-2 | 20-000 Cycles |
Silicone coated glass cloth can be supplied cut to size, by the roll, or manufactured to suit your bespoke requirements. All single and double coated options below are available.
InsoFire offers various thickness and coating duty silicone fabric, liquid silicone coated fiberglass fabric and calendered silicone coated glass fabric, Silicone coated aramid fabric, silicone coated carbon fabric are made as request.
Product Features
● Operating temperature range from -70°C to +260°C (depending on grade, please see technical data sheets).
● High thermal conductivity.
● Excellent heat resistance.
● Excellent fire resistance, spark & flame resistant.
● High stability, low smoke release.
● Good resistance to most chemicals.
● Excellent corrosion resistance.
● Excellent release properties
● Halogen free, asbestos free, non-itchy.
● Non-toxic odorless and tasteless
● Excellent water repellent, chemicals, oil and high temperature resistance. Waterproof Greatly adapting to most thermal insulation sewn
● High strength, durability and flexibility
● Meet marine fire certification of IMO
● Colors can be made as request: grey, silver, black, white, orange, red, blue, green, pink, etc.
Product Application
● Removable insulation
● Expansion Joints / flexible duct connectors
● Thermal cover, mattress, blanket
● Welding blanket, fire blanket
● Fire insulation doors & curtains
● High temperature flexible house
● Heater insulation blanket
Related Parameters
|
Item |
Total Thickness （mm） |
Coating Weight （g/m2） |
Coating side |
Total weight g/m2 |
Weave |
|
SC200 |
0.22 |
50 |
single |
250 |
Plain |
|
0.22 |
120 |
double |
320 |
Plain |
|
|
SC400 |
0.4 |
50 |
double |
470 |
4H Satin |
|
0.4 |
60 |
single |
480 |
4H Satin |
|
|
0.4 |
80 |
single |
500 |
4H Satin |
|
|
0.4 |
100 |
Single, double |
520 |
4H Satin |
|
|
0.4 |
130 |
Single, double |
550 |
4H Satin |
|
|
0.4 |
160 |
Single, double |
580 |
4H Satin |
|
|
SC600 |
0.8 |
120 |
single |
760 |
8H Satin |
|
0.8 |
260 |
Single, double |
900 |
8H Satin |
|
|
0.8 |
300 |
double |
940 |
8H Satin |
|
|
0.8 |
400 |
double |
1040 |
8H Satin |
|
|
SC600R |
0.8 |
300 |
double |
1030 |
8H Satin |
|
SC800 |
1 |
200 |
double |
1080 |
8H Satin |
|
1 |
260 |
double |
1120 |
8H Satin |
|
|
1.1 |
1000 |
single |
1840 |
8H Satin |
|
|
SC1000(R) |
1.3 |
750 |
single |
1850 |
Plain |
|
1.5 |
1550 |
double |
2550 |
Plain |
|
|
SA30 |
1.3 |
1000 |
Single, double |
2000 |
Plain |
All above sizes, width, length, coating weight, colors can be customized according to your needs.
