INSOFIRE Fibreglass Tape Fibreglass Tapeantislippery

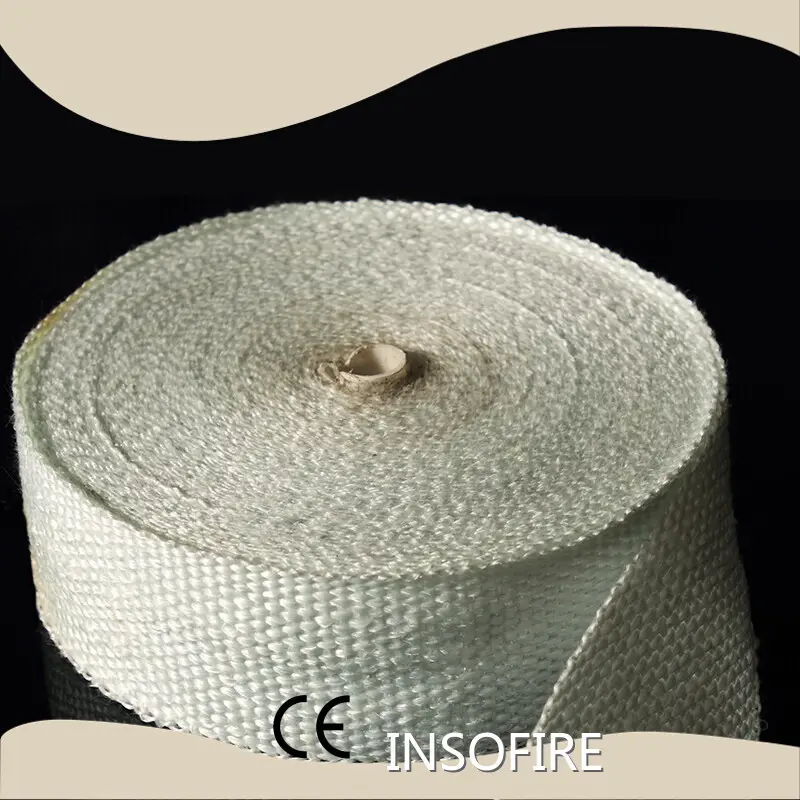

Product details of the fibreglass tape
Product Information
InsoFire Material Technology Co., LTD can offer customers all kinds of fibreglass tape with different sizes and colors. Following the stringent industry standards in the inspection and testing process, the product is sure to be of the highest quality. The product we offer is supplied in the domestic and the global market.
Product Features
● Temperature: Up to +550°C.
● Excellent insulation properties.
● Extra soft, thick and pliable.
● Inorganic, sterile and incombustible.
● Good resistance to oils, solvents and most chemicals.
● Low level of leachable chlorides and fluorides.
● Low thermal conductivity- approx.0.05 w/m.k.
● Fiberglass tape with aluminum foil or silicone rubber can be customized.
Product Application
● Insulating electric and induction-type furnace power supply leads
● Securing high-temperature, non-PSA insulation (such as asbestos and glass) in high-temperature areas.
● Splicing silicone-covered glass wire where splices require more abrasion resistance and mechanical strength than can be provided by silicone tapes. Insulating Class “H” dry-type transformer leads.
● Used in a variety of coil/transformer and motor applications, including an outer wrap or bobbin wound coils, banding arbor wound coils, lead pad hold down,end turn and lead anchor and connection.
● Suitable for use as thermal insulation to pipes, exhausts and vessels.
● Used for pre-heat insulation, oven and furnace linings, seals, gaskets and welding applications for stress relief.
Related Parameters
|
Item |
Warp Yarn(tex) |
Weft Yarn(tex) |
Yarn Counts(ends/cm) |
Thickness(mm) |
Weight(g/㎡) |
Max Roll Length(meter) |
|
ET110 |
EC9-33*1Z40 |
EC9-33*1Z40 |
18*7.2 |
0.11 |
110 |
5000 |
|
ET130 |
EC8-24*2S110 |
EC8-24*2S110 |
14*6.9 |
0.13 |
130 |
5000 |
|
ET160 |
EC9-33*2Z40 |
EC9-33*2Z40 |
14*5.4 |
0.16 |
160 |
5000 |
|
ET200 |
EC9-33*4Z40 |
EC9-33*4Z40 |
8*7 |
0.20 |
200 |
3000 |
|
ET270 |
EC9-33*3Z40 |
EC9-33*3Z40 |
13*6.4 |
0.27 |
270 |
3000 |
|
ET300 |
EC9-33*4Z40 |
EC9-33*4Z40 |
12*5.5 |
0.30 |
300 |
2000 |
|
ET500 |
EC9-33*8Z40 |
EC9-33*8Z40 |
12*6.4 |
0.50 |
500 |
2000 |
|
TX1200 |
1000 |
500 |
7*3.2 |
1.50 |
1200 |
100 |
|
TX1500 |
1500 |
500 |
6*2.8 |
2.00 |
1500 |
100 |
|
TX2000 |
2700 |
1000 |
5*2 |
3.00 |
2000 |
100 |
Above information is only for reference, if you need other sizes, please contact customer service, all models and sizes can be customized.
Company Advantage
• Our products are supplied throughout the country, and some products are exported to some countries and regions in Europe, America, Africa and Southeast Asia.
• To develop continuously, our company has recruited talents and established an elite team. They have high technical level and strong research and development strength.
• We collect problems and demands from target customers all over the country through deep-going market research. Based on their needs, we keep improving and updating original service plan, to maximize our company service level and establish a good corporate image.
INSOFIRE produces various Fire retardant fabrics,Fire prevention products,fire blankets in the long term. We provide massive excellent choices and one-stop order service!
