Newwelding Blanket Fireproof for Different Industries
Features
InsoFire offers customers the chance to tailor custom-made protection blankets for welding, cutting and grinding operations, according to the client’s need and with different flame retardant fabrics in relation to the kind of welding that is going to be performed. The perimeter is reinforced with a bias and also InsoFire offers the opportunity to incorporate metallic grommets on each 50 cm to ease its holding.
The maximum measurements that can be acquired are 10x10 meters. For higher sizes, we recommend our clients contact InsoFire’s team via phone or email.

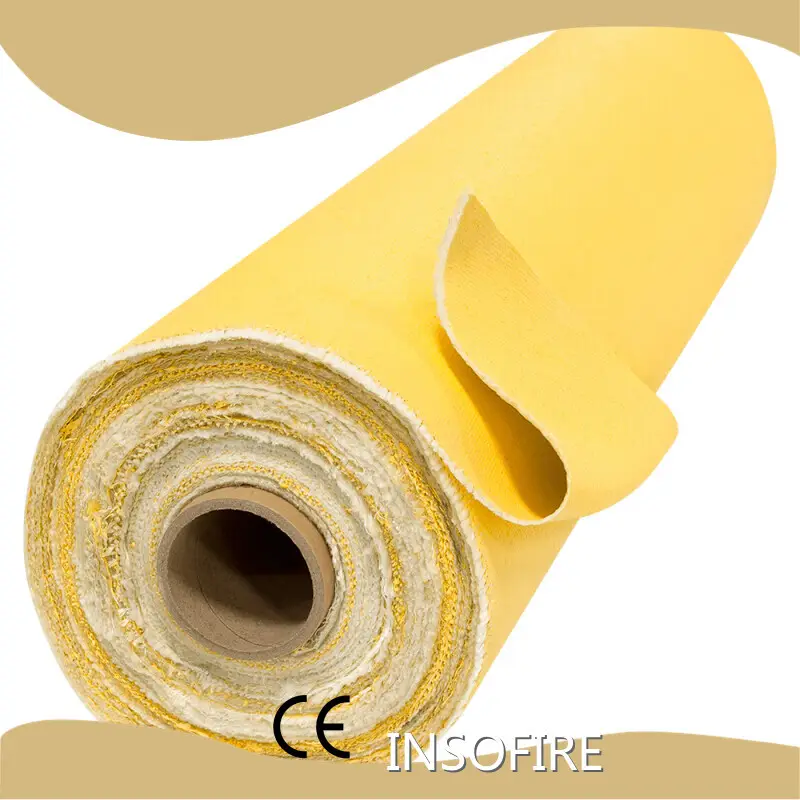

We also supply the fire welding blankets in rolls, with width 1m/1.2m/1.5m, roll length 50m or 100m, as your needs.
APPLICATIONS
● Fire retardant blanket for MIG welding.
● Fire retardant blanket for TIG welding.
● Fire retardant blanket for Electrode welding.
● Fire retardant blanket for radial cutting.
● Flame retardant blanket for oxyfuel cutting works.
● Flame retardant blanket for plasma cutting works.
● Flexible flame retardant barrier.
● Flame retardant curtain for welding.
● Thermal barrier to protect elements.
● Suitable for works with ferrous and non-ferrous metals.
Related Parameters
|
Name |
Fabric Material |
size |
Thickness |
Temp Resistance |
Package |
||
|
m |
ft |
mm |
inch |
||||
|
Welding fire blanket |
1. Fiberglass fabric |
1*50m/roll 1.2*50m/roll 1.5*50m/roll 1.8*50m/roll 1.0*1.0m 1.2*1.2m 1.2*1.8m 1.8*1.8m 2.4*2.4m 6*6m 6*8m 6*9m 10*10m |
3*167ft 4*167ft 5*167ft 6*167ft 3*3ft 4*4ft 4*6ft 6*6ft 8*8ft 20*20ft 20*27ft 20*30ft 33*33ft |
0.4mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 3.0mm |
0.16in. |
300℃, |
1.PE plastic bag |
|
2. Silica fabric |
0.24in. |
550℃, |
2.PVC bag with zippers |
||||
|
3. PU coated fabric |
0.31in. |
800℃, |
3. Woven bag (in rolls) |
||||
|
4. Silicone coated fabric |
0.39in. |
1200℃ |
4. Customized |
||||
|
5. Acrylic coated fabric |
0.47in. |
|
|
||||
|
6. Neoprene coated fabric |
0.59in. |
|
|
||||
|
7. Vermiculite coated fabric |
0.79in. |
|
|
||||
|
|
1.18in. |
|
|
||||
Coating Options
InsoFire provides Welding blankets, including silicone coating, acrylic coating, vermiculite coating, and graphite coating, to adapt to different application scenarios such as high temperature insulation,
heat resistant radiation, heat reflection, flame piercing,etc.
Color Options
InsoFire provides Welding blankets in more than 10 colors.
Why are there so many different fabrics for welding?
|
Fabric you can choose from InsoFire |
Types of welding |
|
Fiberglass fabric |
Light, middle, heavy welding sparks |
|
PVC coated fiberglass fabric |
Light welding sparks |
|
Silicone coated fiberglass fabric |
Light, middle, heavy welding sparks |
|
Acrylic coated fiberglass fabric |
Middle welding sparks |
|
Silica cloth |
Heavy, Extreme heavy welding sparks |
|
Vermiculite coated fiberglass fabric |
Heavy, Extreme heavy welding sparks |
|
Triple layered fiberglass fabric |
Extreme heavy welding sparks |
|
Size can be customized from InsoFire. |
|
How to choose welding blanket or cloth?
1. Select application.
General applications of welding blanket or cloth:
● Light duty - general purpose welding, light sparks and small spatter. Not recommended for horizontal application.
● Medium duty - heavier welding, sparks, spatter and light slag.
● Heavy duty - heavy sparks, spatter, slag and molten metal.
● Stress relief - choose soft materials recommended for Stress relief applications. The coated materials usually are not recommended for stress relief applications.
2. Determine dimensions of area to be protected.
● InsoFire provides welding cloth in roll form or in prefabricated blankets. Consider dimensions of area to be protected and determine what form is suitable.
3. Select the finished blanket or cloth.
● Stiff material coated material has better abrasion resistance. Stiffer to allow spatter and slag to roll off easily.
● Soft material without coated material is pliable. This material is easy to be draped over and wrapped around objects. It's usually used for stress relief applications.
● Weight and thickness of material: the heavier and thicker material provide better protection and take longer to burn through.
Company Advantages
· The whole production of INSOFIRE welding blanket fireproof is based on the guidance of lean production.
· The product produced under the circumstances we set meets the strictest quality criteria.
· InsoFire Material Technology Co., LTD thinks quality of InsoFire Material Technology Co., LTD is the most important and can guarantee for quality.
Company Features
· InsoFire Material Technology Co., LTD is one of the most dynamic companies in the complex world of welding blanket fireproof manufacturing.
· InsoFire Material Technology Co., LTD has leading technology and highly advanced machines.
· INSOFIRE shares a great dream of being a worldwide welding blanket fireproof manufacturer and wholesaler. Contact us!
Application of the Product
INSOFIRE's welding blanket fireproof can be used in multiple industries and fields.
INSOFIRE always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.
