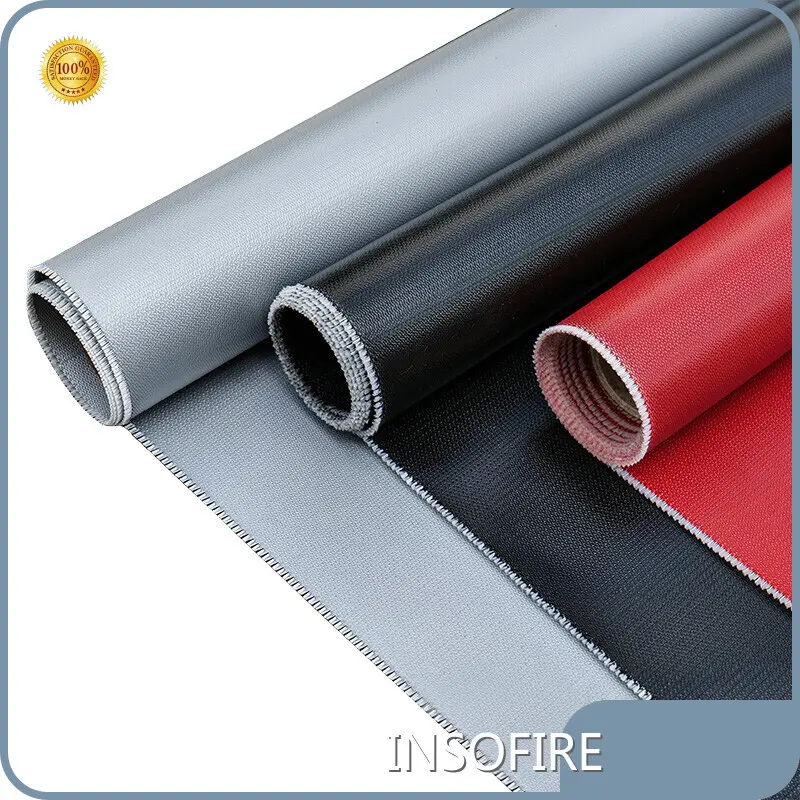

Silicone Coated Glass Fabric Drip-dry
Product details of the silicone coated glass fabric
Product Description
There are different silicone coated glass fabric in various sizes available. Our clients greatly trust the product for its unmatched quality and long-lasting performance. Quality check is fundamental to the production of silicone coated glass fabric.
Related Parameters
|
Fire Resistance |
UL 94 V0 |
|
Radiant Heat |
EN ISO 6942 | C1 |
|
Traction Resistance |
ASTM-D-1424 | Warp 1500 lbs/inch Fill 2025 lbs/inch |
|
Flame Propagation |
ISO 15025 | A1 - A2 |
|
Melted Metal Splashes |
EN ISO 9150 | CLASS 2EN ISO 9185 | E3/D3 |
|
Water Penetration Resistance |
EN 20811 | 100 |
|
Resistance Welding And Cutting Projections |
11611 | CLASS 2 |
|
Abrasion Resistance |
ISO 12947-2 | 20-000 Cycles |
Silicone coated glass cloth can be supplied cut to size, by the roll, or manufactured to suit your bespoke requirements. All single and double coated options below are available.
InsoFire offers various thickness and coating duty silicone fabric, liquid silicone coated fiberglass fabric and calendered silicone coated glass fabric, Silicone coated aramid fabric, silicone coated carbon fabric are made as request.
Product Features
● Operating temperature range from -70°C to +260°C (depending on grade, please see technical data sheets).
● High thermal conductivity.
● Excellent heat resistance.
● Excellent fire resistance, spark & flame resistant.
● High stability, low smoke release.
● Good resistance to most chemicals.
● Excellent corrosion resistance.
● Excellent release properties
● Halogen free, asbestos free, non-itchy.
● Non-toxic odorless and tasteless
● Excellent water repellent, chemicals, oil and high temperature resistance. Waterproof Greatly adapting to most thermal insulation sewn
● High strength, durability and flexibility
● Meet marine fire certification of IMO
● Colors can be made as request: grey, silver, black, white, orange, red, blue, green, pink, etc.
Product Application
● Removable insulation
● Expansion Joints / flexible duct connectors
● Thermal cover, mattress, blanket
● Welding blanket, fire blanket
● Fire insulation doors & curtains
● High temperature flexible house
● Heater insulation blanket
Related Parameters
|
Item |
Total Thickness （mm） |
Coating Weight （g/m2） |
Coating side |
Total weight g/m2 |
Weave |
|
SC200 |
0.22 |
50 |
single |
250 |
Plain |
|
0.22 |
120 |
double |
320 |
Plain |
|
|
SC400 |
0.4 |
50 |
double |
470 |
4H Satin |
|
0.4 |
60 |
single |
480 |
4H Satin |
|
|
0.4 |
80 |
single |
500 |
4H Satin |
|
|
0.4 |
100 |
Single, double |
520 |
4H Satin |
|
|
0.4 |
130 |
Single, double |
550 |
4H Satin |
|
|
0.4 |
160 |
Single, double |
580 |
4H Satin |
|
|
SC600 |
0.8 |
120 |
single |
760 |
8H Satin |
|
0.8 |
260 |
Single, double |
900 |
8H Satin |
|
|
0.8 |
300 |
double |
940 |
8H Satin |
|
|
0.8 |
400 |
double |
1040 |
8H Satin |
|
|
SC600R |
0.8 |
300 |
double |
1030 |
8H Satin |
|
SC800 |
1 |
200 |
double |
1080 |
8H Satin |
|
1 |
260 |
double |
1120 |
8H Satin |
|
|
1.1 |
1000 |
single |
1840 |
8H Satin |
|
|
SC1000(R) |
1.3 |
750 |
single |
1850 |
Plain |
|
1.5 |
1550 |
double |
2550 |
Plain |
|
|
SA30 |
1.3 |
1000 |
Single, double |
2000 |
Plain |
All above sizes, width, length, coating weight, colors can be customized according to your needs.
